7 16×40 Shed House Interior Layouts for Every Style

These 7 ideas run from raw stud walls waiting on insulation to a finished grey living room and kitchen you could move into tomorrow, so the deciding factor is how much weekend labor you still have ahead of you versus how turnkey you need the space to be right now.

Plywood walls with built-in shelving give you modular storage without drilled holes, but only if you are mid-project and have the tools out already.

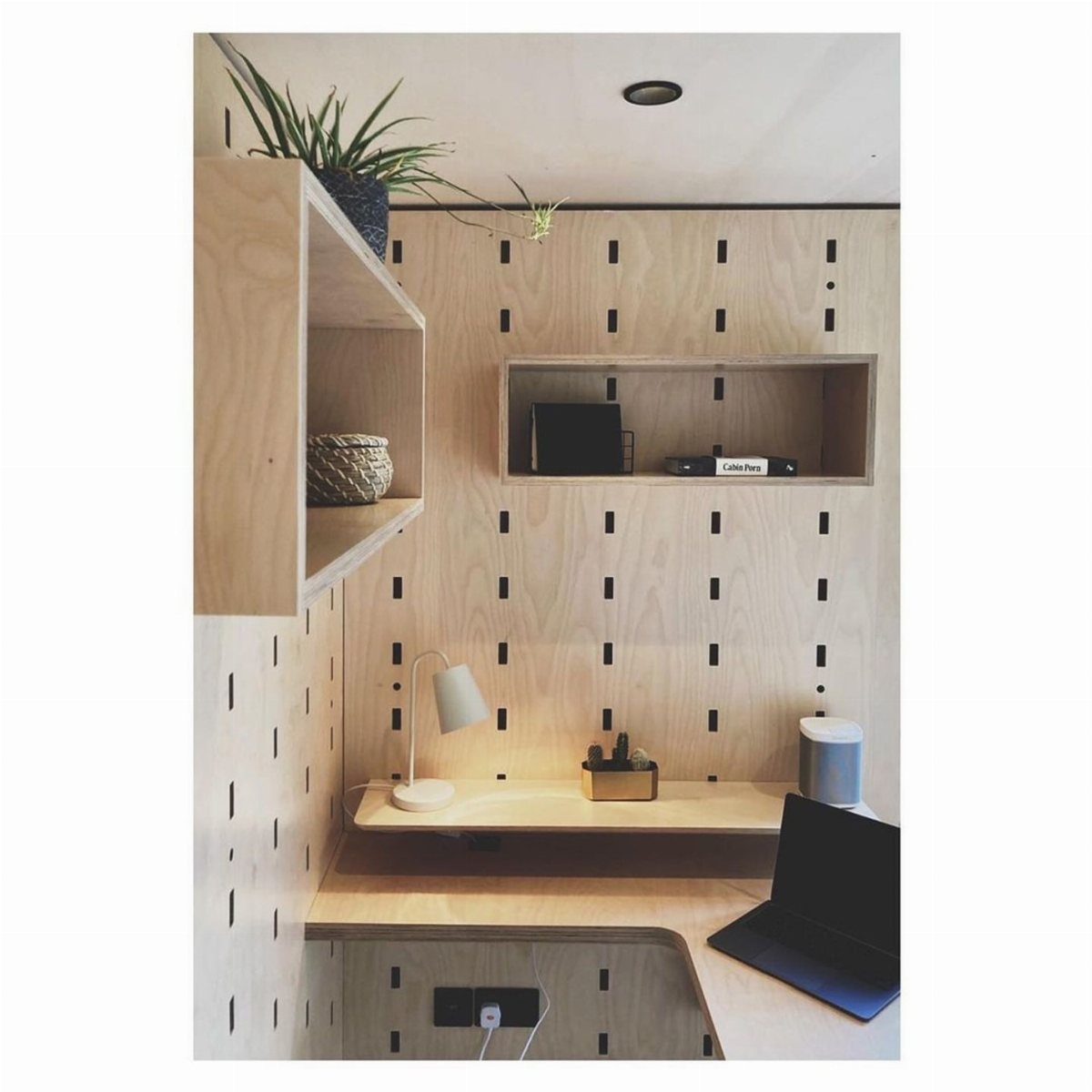

1. Plywood Walls with Built-In Shelving

Slotted plywood turns an entire wall into a modular storage system without a single drilled hole. The vertical grooves accept box shelves, hooks, or a desk bracket at any height you want, then move when your needs change.

I would check the plywood grade before ordering. Birch or maple gives you clean edges; construction-grade pine splinters and shows every knot.

The slots need a router and a straight bit, or you pay a shop to cut them. Either way, spacing matters: measure your shelf brackets before you cut the plywood, since hardware varies and a tight fit beats guessing.

This setup suits someone who works from the shed and cannot give up floor space to bookcases.

Open shelving collects dust faster than closed cabinets, so plan on wiping it more often or keep only what you use daily within reach.

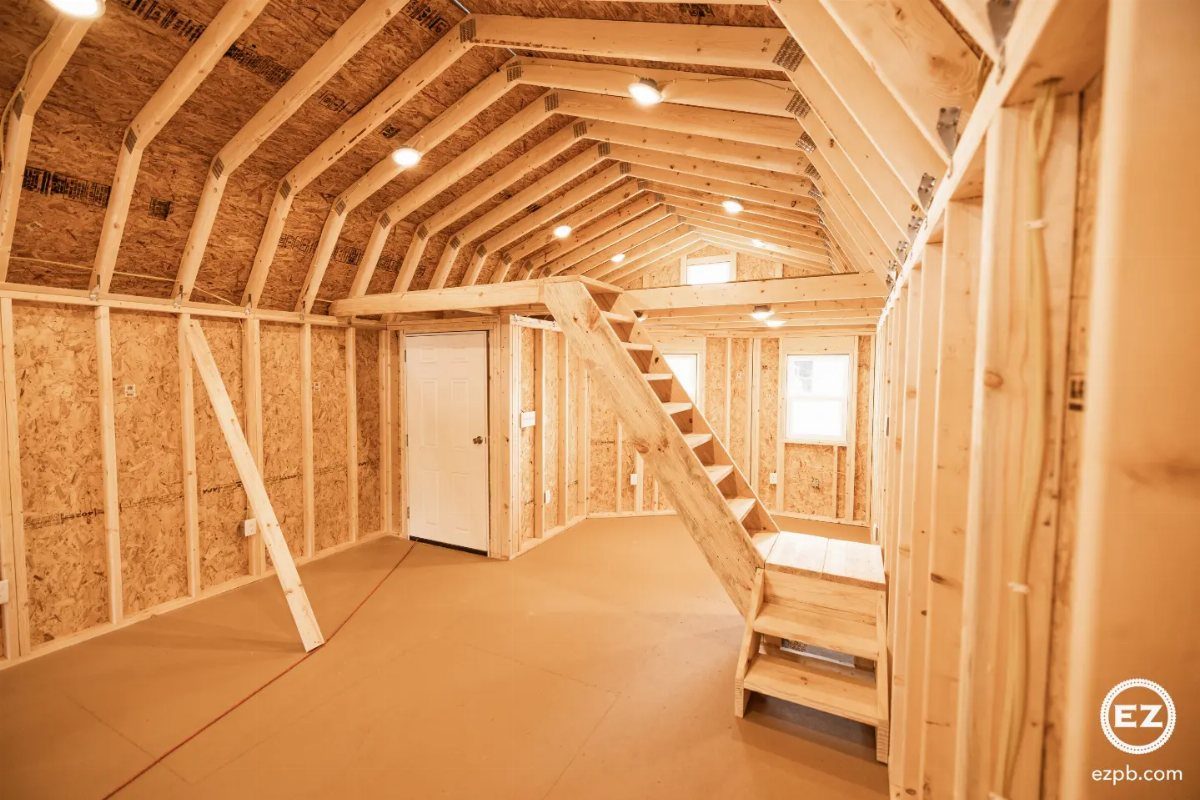

2. Framed Loft and Staircase Layout

A gambrel roof buys you headroom in the loft without the full height of a gable. Simple stringers with raw plywood treads, nothing finished yet, tell me the builder planned the loft early in the framing stage.

Check your local code before you frame this. Some jurisdictions treat any sleeping loft as a bedroom and want an egress window, a smoke detector, and a minimum ceiling height.

The stairs themselves need a handrail at a comfortable height and risers short enough to climb safely; check local code before you nail anything down. Those rules do not care that the space is small.

I like recessed lights tucked between the rafters here.

They give headroom back that a surface-mount fixture would steal. The subfloor visible on the loft is probably tongue-and-groove plywood thick enough to take traffic; anything thinner flexes and squeaks later.

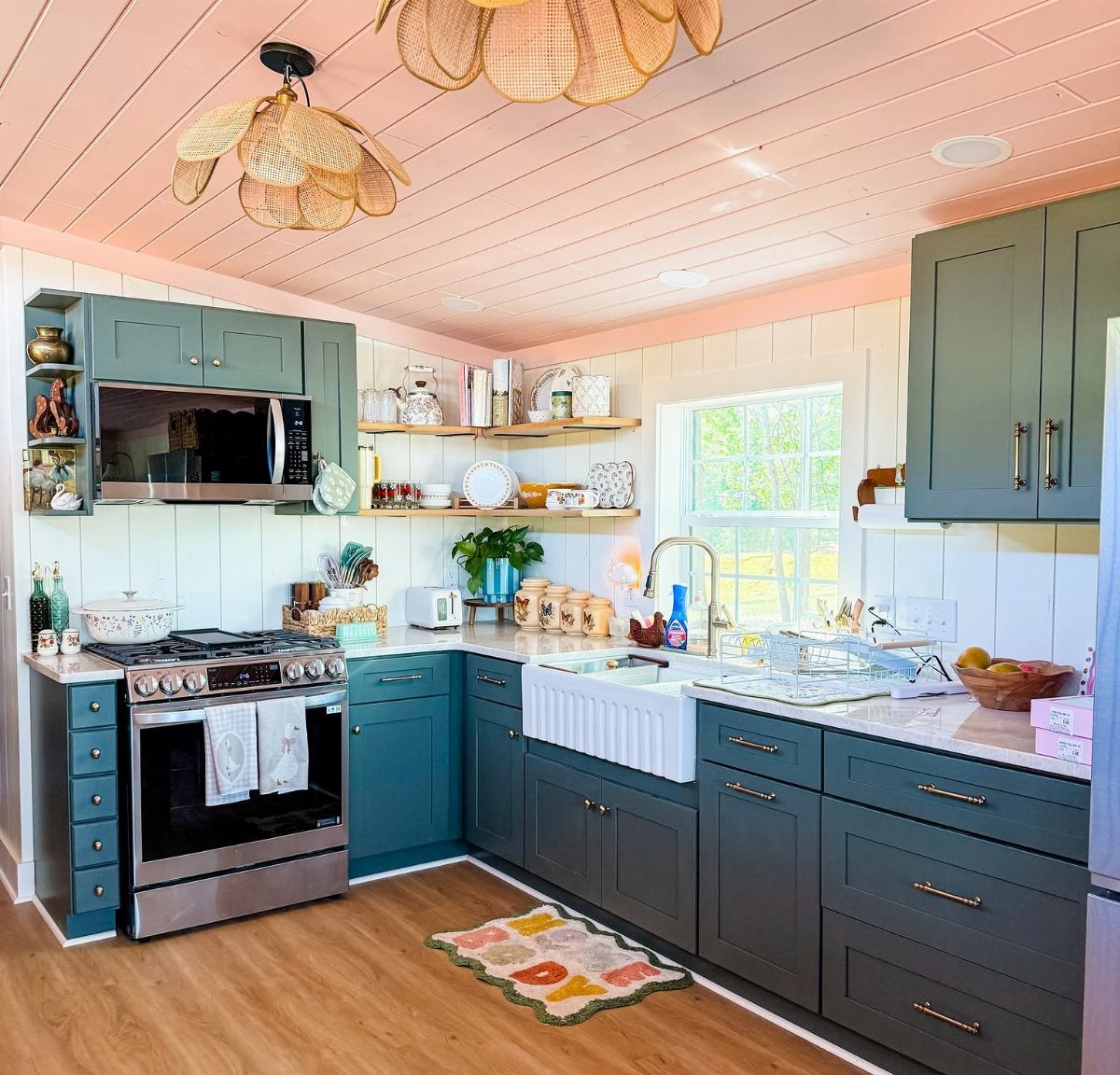

3. Vibrant Cottage Kitchen Setup

Dark teal cabinets against white walls reads as intentional rather than cramped, which matters when the whole kitchen fits in a narrow slice of wall. The fluted apron-front sink adds texture without taking up more counter than a standard basin.

That pink plank ceiling is painted wood, not a stain, so you can touch it up yourself without matching grain.

Paint on a ceiling shows every brush mark unless you spray, so factor that into your weekend timeline or your budget for a pro.

The petal-shaped pendants are woven, probably seagrass or rattan; they diffuse light softly but collect grease near a cooktop.

Open corner shelving looks good in photos. I would only use it for dishes I reach for daily; everything else lives behind a door where dust cannot settle.

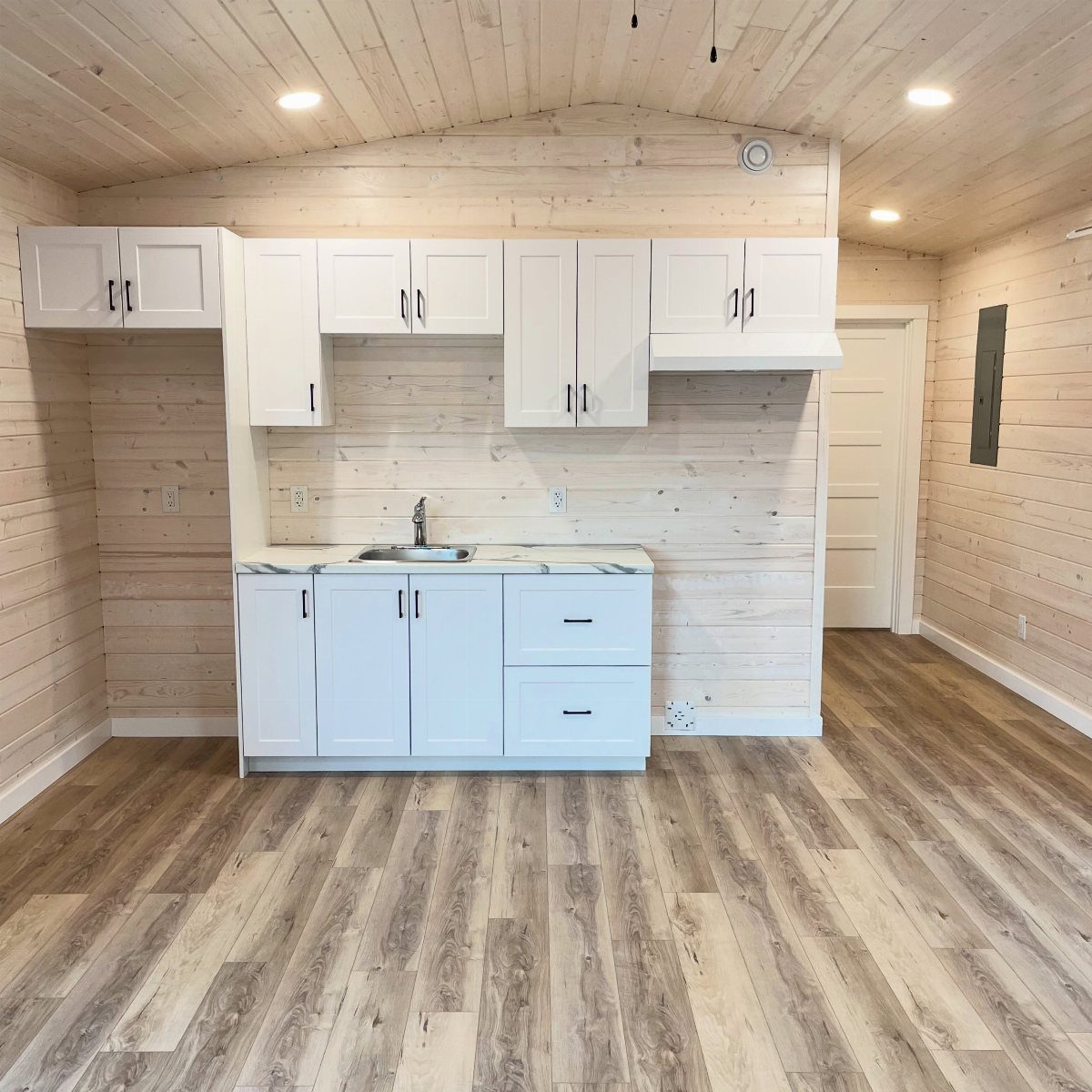

4. Light Wood Paneling and Cabinetry

Light wood paneling on every surface, ceiling included, can feel like a sauna or a sanctuary depending on the tone.

The shade runs warm honey, not the orange-leaning pine common in older cabins, so it pairs better with gray and black accents. That color choice is what keeps it current.

The wood-look vinyl plank on the floor is practical for a shed: it handles moisture better than real wood, clicks together without glue, and floats over minor subfloor flaws.

I would lay it after the wall paneling goes up, not before, to avoid dents from ladders and dropped tools.

White cabinets against all that wood need to be the right white. Too warm and they look dirty; too cool and they clash.

A soft greige usually bridges the gap. A single run of base cabinets with a sink and no uppers keeps the sightline open but limits storage to whatever fits below.

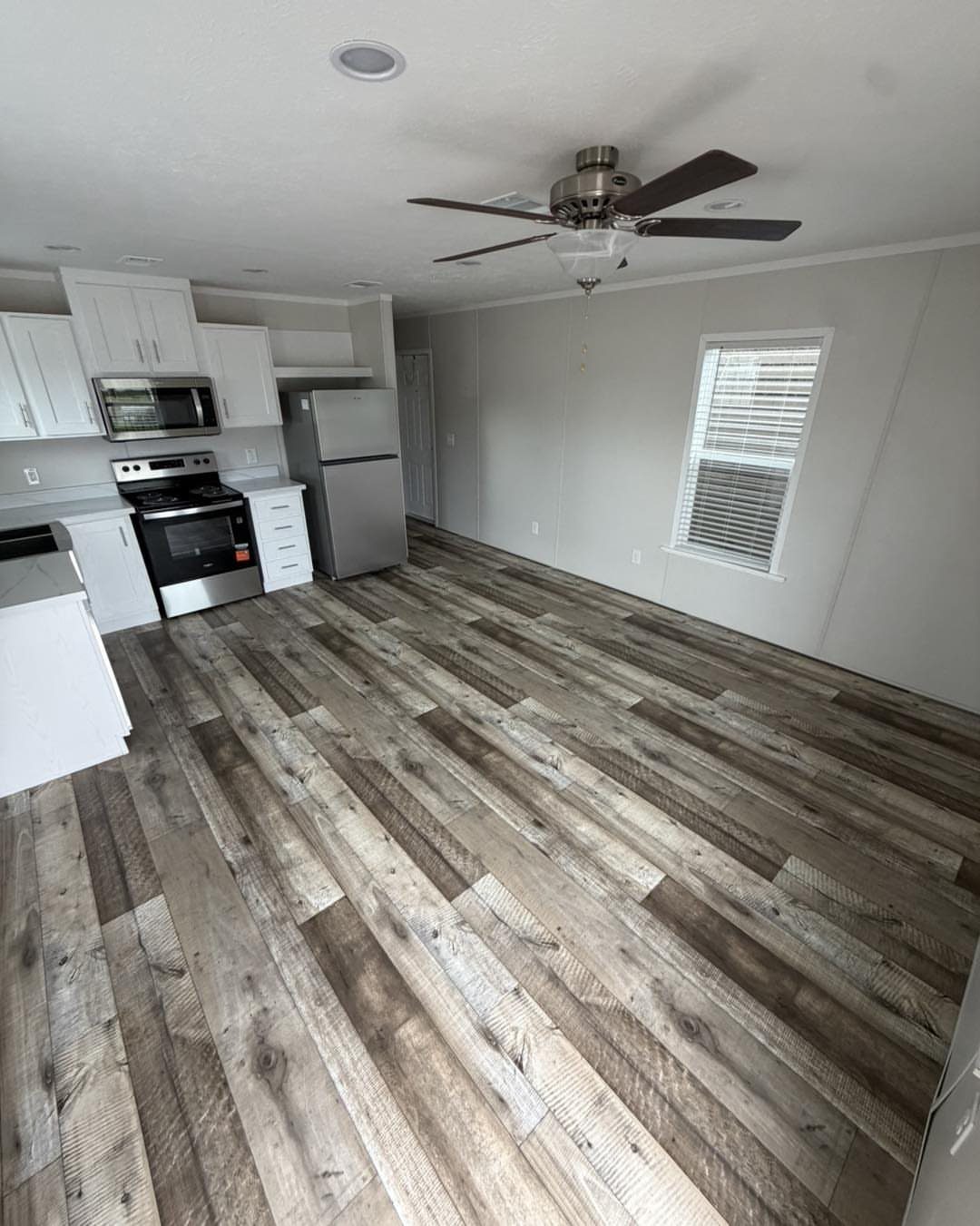

5. Open-Concept Grey Living and Kitchen

Light grey drywall and wood-look flooring is the safe combination that builders default to, and for good reason. It photographs well for resale, hides dirt, and lets you change accent colors without repainting everything.

The ceiling fan tells me this is a finished, conditioned space, not a weekend-only shed.

Fans need plenty of headroom to the blade tips; in a shed house with standard walls that works fine until you add a loft and lose the height. Plan the fan placement before you frame any upper level.

I would run the plank flooring parallel to the long wall. Running the boards lengthwise stretches the room visually and avoids the chopped-up look that cross-planking gives a narrow space.

The kitchen appliances are standard units, not apartment size, which means the cabinet run needs enough length to fit them without crowding.

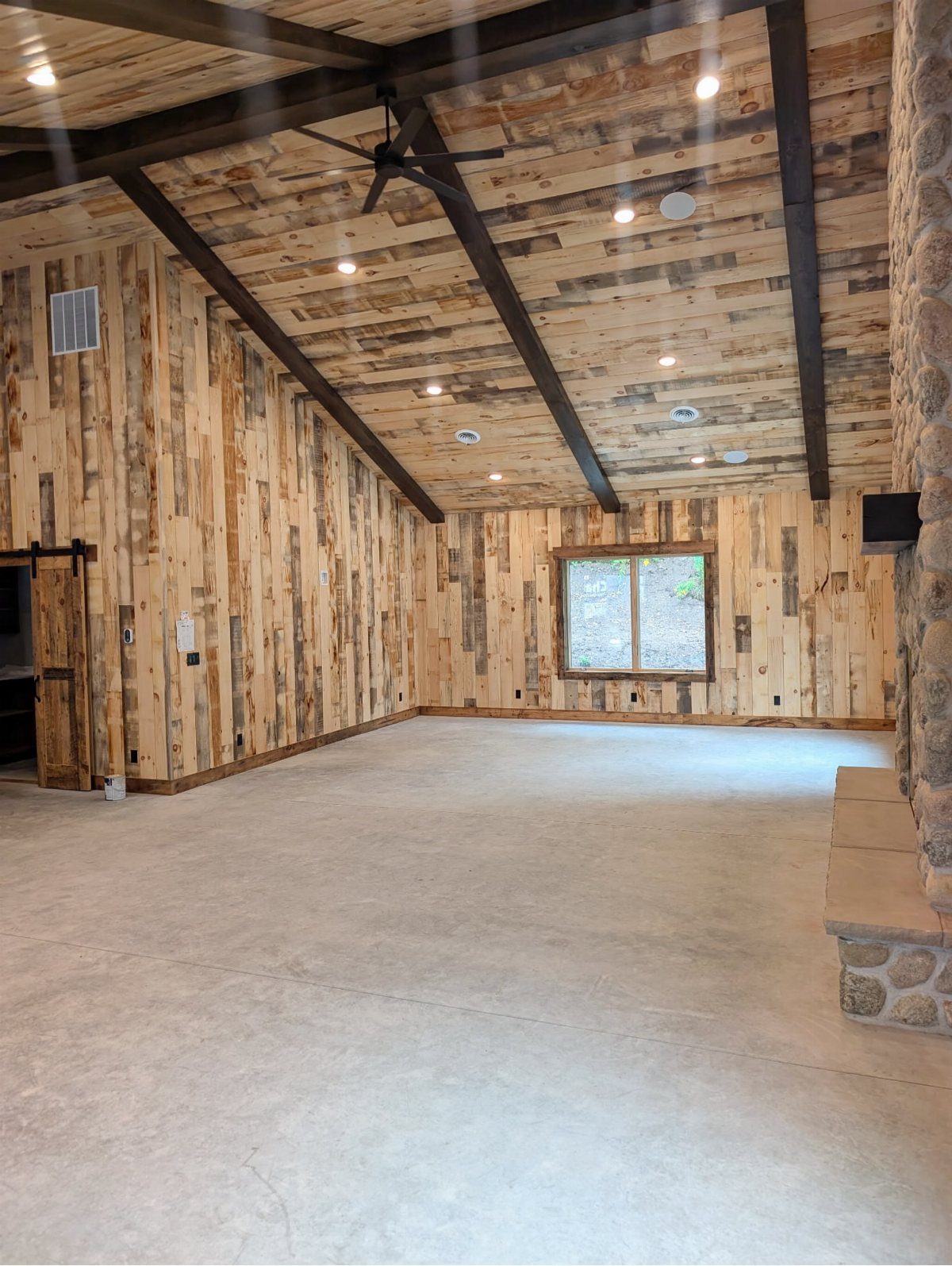

6. Rustic Beams and Concrete Flooring

Dark beams against a wood-paneled ceiling add contrast that reads as structure even when both are decorative. Those beams are probably 4×6 or 6×6 timbers, stained espresso, spaced wide enough to let the recessed lights fall between them.

Concrete flooring in a shed house means either a slab pour or a topping over existing subfloor.

A true slab adds thermal mass, which helps in summer but sucks heat in winter unless you run radiant tubes or lay down thick rugs.

The smooth finish is power-troweled, not stamped or stained; that saves money and keeps the look clean.

The stone hearth is the detail I would think twice about. It anchors the room beautifully, but a real masonry hearth needs a footing that reaches below frost line, even in a shed on piers.

That is not a weekend job. A lightweight stone veneer over a framed bump-out gives the look without the engineering.

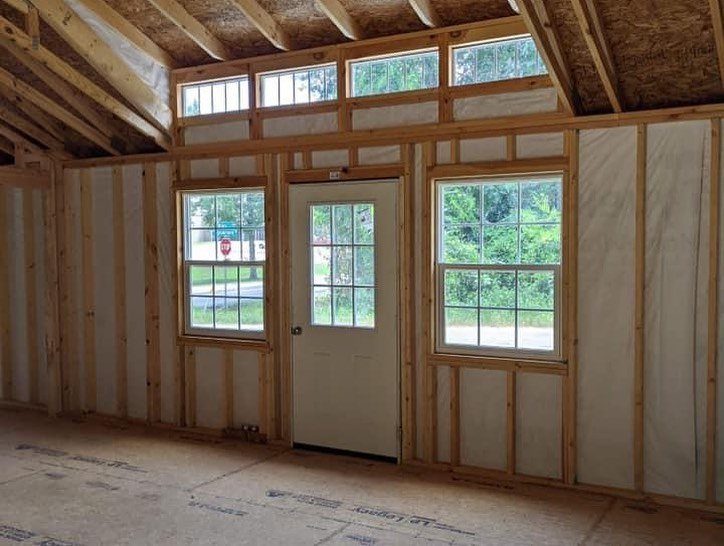

7. Stud Wall Framing with Insulation

Stud walls with insulation are where every finished shed house starts: vertical 2x4s spaced for standard sheeting, the white face of house wrap or a vapor barrier still exposed, subfloor down, door and windows set but no drywall yet.

The insulation choice at this point determines how the space lives year-round.

Fiberglass batts are cheap and familiar; mineral wool handles moisture better and does not itch. Spray foam costs more but seals every gap, which matters in a structure that started life as a shed and may have settled unevenly.

I would check the R-value needed for my zone before I buy anything; the Department of Energy publishes those numbers by state, and skimping here means heating bills that erase any savings.

A vapor barrier goes on the warm side, always.

In a heated shed house that means behind the interior finish, not against the outer wall. Getting this backwards traps moisture in the cavity and rots the studs you just stood.

The white membrane visible here looks like a smartwall system or a simple poly sheet; either works if the seams are taped and the penetrations sealed around outlets and windows.

This stage is the moment to run electrical and plumbing before the cavities close.

Retrofitting means cutting finished surfaces you paid to install. I would rough in more outlets than code requires; a 16×40 footprint fills fast with furniture, and extension cords have no place in a permanent living space.

The subfloor visible is probably tongue-and-groove plywood, thick enough for residential loads. I would screw it, not nail it; sheds move more than stick-built houses, and nails back out over time.

The white door and windows are stock units, likely vinyl or primed wood, and they are in now because installing them after interior finishes risks damaging trim and drywall.

Who this suits: someone with basic carpentry skills and a weekend to frame, who understands that this step looks simple but sets every finish that follows.

Skip it if you need turnkey; the savings here are in labor, not materials, and mistakes at this stage compound through every later choice.

Customization Options

Layout customization starts with door and window placement, which most manufacturers cut to order before the walls leave the shop.

I would place the entry on the long wall if the shed sits deep on the lot; that gives you a straight shot down the 40-foot length without a hallway eating square footage.

Roof style changes the usable volume more than the footprint. Some builders offer dormers after the fact, but cutting into finished roofing is never as clean as ordering it framed.

Interior partitions are easier to move before insulation goes in.

I would order the shell with no interior walls, then frame my own once I have lived in the open box for a week and know where the light falls and where noise travels.

Quality of Materials

Pressure-treated lumber for the floor joists and wall plates is the baseline, not an upgrade.

I would still check the retention level stamped on the end of each piece; 0.15–0.25 pcf is standard for above-ground use, and anything less belongs in a garden bed, not a house.

Architectural-grade asphalt shingles with an algae-resistant coating are common on these builds. The coating matters more than the color; black streaks from airborne spores show up fast on uncoated shingles, and a 16×40 roof is not a quick weekend wash.

The price moves with asphalt markets, so a quote with a lock-in window is worth taking when you get it.

Metal roofing costs more upfront and lasts longer; some builders offer it, some do not. If you are choosing between a thicker shingle and a thin metal, I would take the shingle and put the difference into wall insulation.

Building Process

Factory-built sheds arrive in panels or as whole wall sections, depending on the builder and the road width to your site.

Amish crews often frame on site with hand tools; that is slower than a nail gun but leaves tighter joints where walls meet the floor.

I would watch the corner bracing during raising; a racked frame telegraphs through every finish that follows.

The sequence is usually floor deck, walls, roof, then windows and doors. Roofing felt goes down the same day the sheathing is bare, which matters if your weather turns.

I would be on site for the roof day; a crew working fast can paper and shingle before a afternoon storm, or they can skip the felt overlap and leave you a leak to find later.

Final trim and interior work happen after the shell is weather-tight.

Some builders include this, some hand you a dried-in box and a list of subs. Clarify that before you sign; the price gap between those 2 contracts is often half the total.
