Garage roof designs run from a single shed plane you could frame in a weekend to a gambrel with 2 pitches and a dormer cut for upstairs headroom.
Start with what you are actually doing in the garage: storing a mower, or building out a workshop with daylight and a stair to a studio.

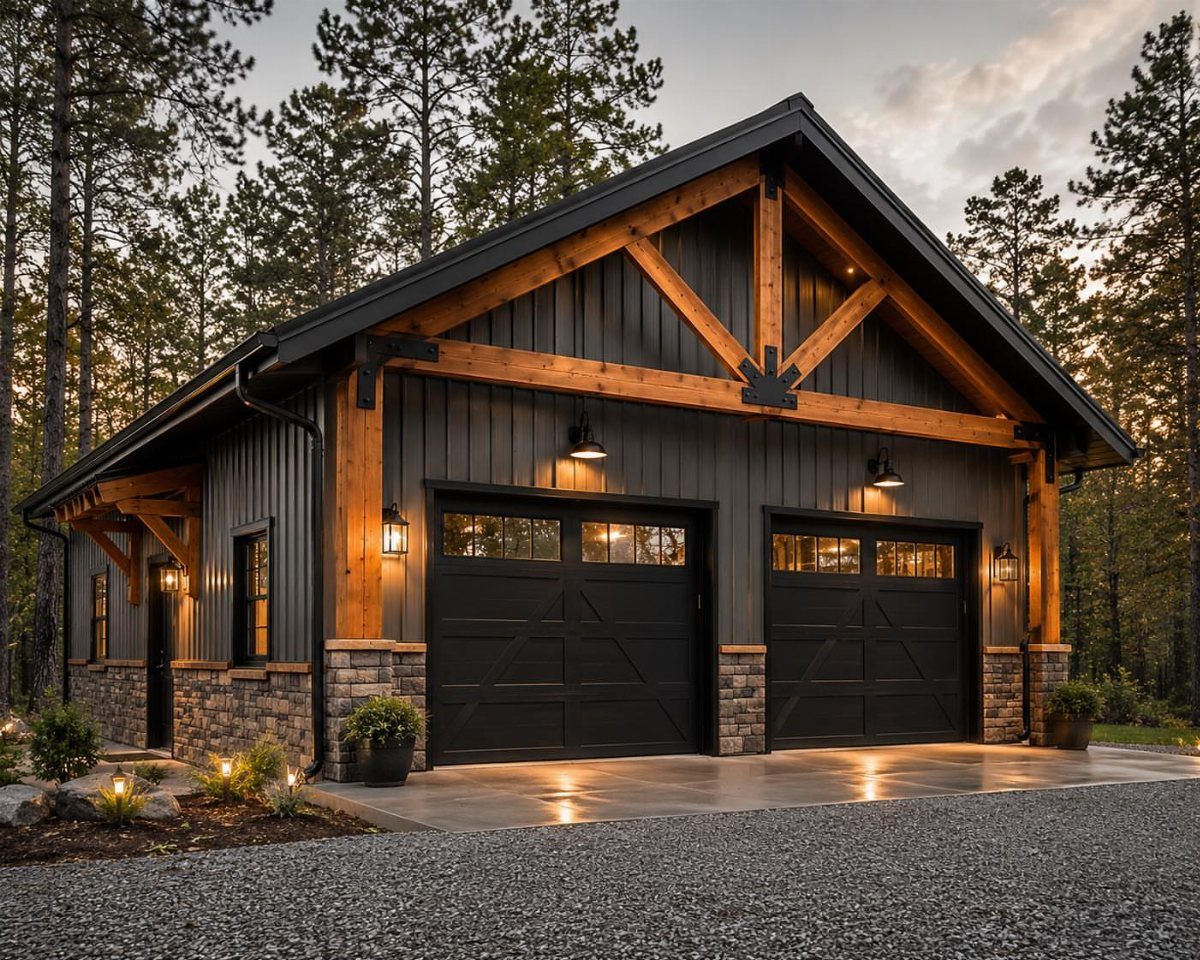

1. Gable Roof
A gable roof is the triangle you picture when someone says "garage." 2 sloping planes meet at a ridge, shedding rain and snow to either side.
Check your local snow load before settling on pitch. Too shallow and you are shoveling; steep enough and gravity does the work.
The most common style of garage roof is the gable. The roof has two symmetrical slopes that meet to form a triangle over the door.
— HomeTips
【Sturdy Metal Panels】Our metal roof panels are made of high-quality galvanized steel and are extremely durable.They offer superior UV resistance and color retention to prevent fading, along with strong corrosion resistance. This sturdy material ensures lasting stability and protection, capable of adapting to and protecting your structure through extreme heat, heavy rain, snow, and various harsh climates.
【Product Specification】The Metal Panels' Dimensions/Per Pieces:42.52" x 17.72" (L x W); Thickness:0.01"
[ENHANCED COMFORT AND PROTECTION] These Wedgie Pads are roofing tools that prioritize worker comfort and shingles protection during installation. Its foam pad design ensures cushioning for the knees, providing insulation from excessive heat and reducing discomfort.
2. Hip Roof
The hip roof slopes on all 4 sides, meeting at a ridge or a flat top. That geometry braces itself against wind better than a gable end, which matters if you are in hurricane alley or the plains.
Shingles like the ones visible are standard, but I would price metal against them.
The hip creates more cuts, more flashing, more labor. A complex hip on a large garage runs higher than a gable of the same footprint because every plane needs its own framing, flashing, and labor.
For a simple box with one door, the difference shrinks and the extra durability is worth it to me.
[High-Quality Material]: The multi-functional metal roof panels are made from premium galvanized steel sheets, featuring UV resistance, colorfastness, sturdiness, durability, corrosion resistance, and adaptability to various climates
Thicker Panel Design Boasting a 0.013-inch thickness, our panels surpass common market offerings for superior rigidity. Constructed from a galvanized steel substrate, they provide exceptional resistance to corrosion and UV rays, ensuring reliable long-term performance even in demanding environments.
·Thicker Panel Design Boasting a 0.013-inch thickness, our panels surpass common market offerings for superior rigidity. Constructed from a galvanized steel substrate, they provide exceptional resistance to corrosion and UV rays, ensuring reliable long-term performance even in demanding environments.
3. Single-Pitch/Shed Roof
One plane, one pitch, one direction for water to run.
The shed roof is the cheapest garage roof to frame because there are no valleys, no hips, no ridge junctions. Corrugated metal plays to that simplicity: sheets run the full length, few seams, few leaks waiting to happen.
Pitch still matters.
I would not go below 1:12 with metal, or water lingers at the laps. A steeper shed, 3:12 or 4:12, drains faster and looks less like an afterthought from the street.
[Extra-Large Space] Park your full-size truck without touching side walls. Measuring an expansive 14' W x 24' L x 9.4' H, this garage gives you 40% more usable interior space, leaving generous room for utility shelves and workbenches.

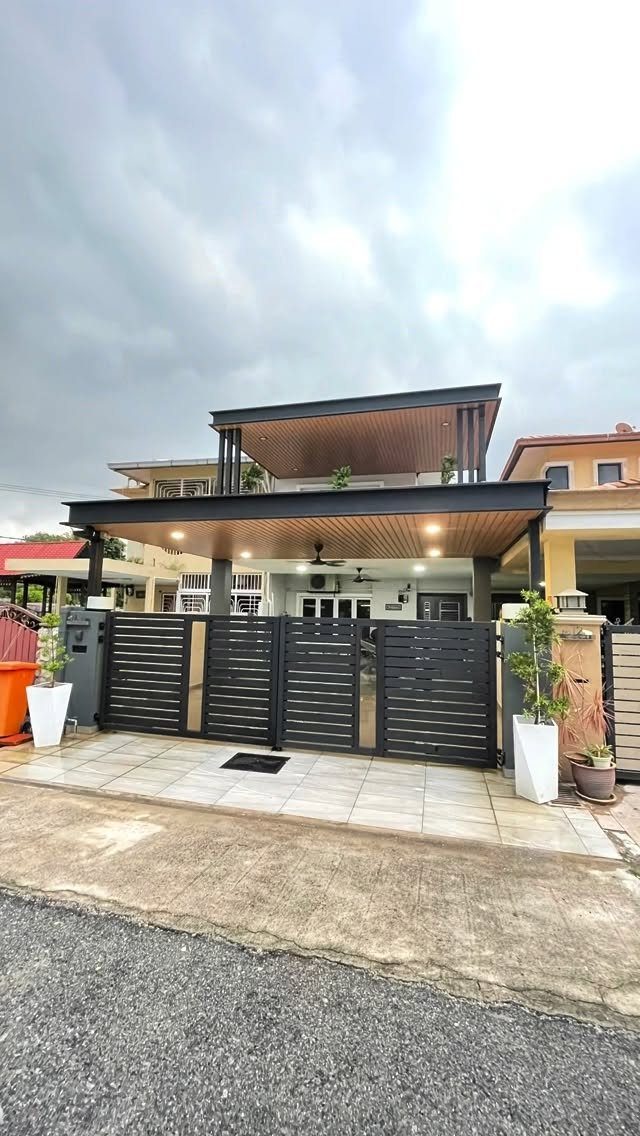

4. Flat Garage Roof
Flat here means nearly flat. A flat garage roof needs just enough pitch to drain, hidden behind that clean horizontal line.
Steel beams and wood infill make the structure visible, but the same principle works on a smaller garage: a slight slope to a scupper or drain, membrane roofing on top.
I would not try this where snow sits for weeks.
The load concentrates, and the membrane takes a beating. For dry climates or with a roof you can access to sweep, the modern profile is hard to beat.
Vulcanized Epdm Rubber: made from vulcanized EPDM rubber, This 50 mil thick roofing membrane delivers exceptional tensile strength is built to handle tearing while keeping its structure intact; Engineered to withstand UV exposure, extreme temperature fluctuations, harsh weather conditions without cracking, shrinking, or degrading over time
Vulcanized Epdm Rubber: made from vulcanized EPDM rubber, This 50 mil thick roofing membrane delivers exceptional tensile strength is built to handle tearing while keeping its structure intact; Engineered to withstand UV exposure, extreme temperature fluctuations, harsh weather conditions without cracking, shrinking, or degrading over time
Solves A Leak In Your Flat Roof: Our peel & stick roofing underlayment serves as the second waterproof barrier, effectively blocking the infiltration of rainwater, snow into the building structure, solving water leakage problems in roofs, walls, basements, and other areas.
5. Roof with Dormers
Dormers punch through the roof plane to make headroom upstairs. Gable dormers in a steep metal roof make upstairs space usable for storage, a studio, or a guest room if you run stairs and meet code.
Standing seam metal is the right pairing.
Shingles at dormer valleys invite trouble, and the junctions are the weak point. I would budget for a roofer who has done dormers before; the flashing sequence matters more than the materials.
Insulates up to three 3 feet by 5 feet windows to block drafts
Save on energy costs during cold weather months. Duck Max Strength shrink window film is puncture-resistant and two times thicker than standard window kits to create an airtight seal inside your home to block drafts and cold weather
The single sheet is suitable for covering one extra-large window or up to five standard-sized windows. It s designed for outdoor use.
6. Clerestory Roof
A clerestory roof steps up in the middle, running a band of windows where the 2 pitches meet. Clerestory windows get daylight deep into a workshop without sacrificing wall space for tools or benches.
That raised section adds framing complexity. I would build the walls to the lower pitch first, frame the clerestory wall on top, then set the upper rafters.
The windows need to be operable or at least screened, or the space cooks in summer. For a workspace, I think the light is worth the extra carpentry.
[Extra-Large Space] Park your full-size truck without touching side walls. Measuring an expansive 14' W x 20' L x 9.4' H, this garage gives you 20% more usable interior space, leaving generous room for utility shelves and workbenches.
Premium Galvanized Steel – Thecorrugated metal roofing panels are made of high-quality galvanized steel with superior durability. Resistant to corrosion, rust , fading, and harsh weather, they are ideal for roofing panels and house siding projects.
GALVANIZED STEEL FOR OUTDOOR PERFORMANCE: Made from durable steel material, these panels provide reliable protection for outdoor structures, making them suitable for long-term use in various conditions.

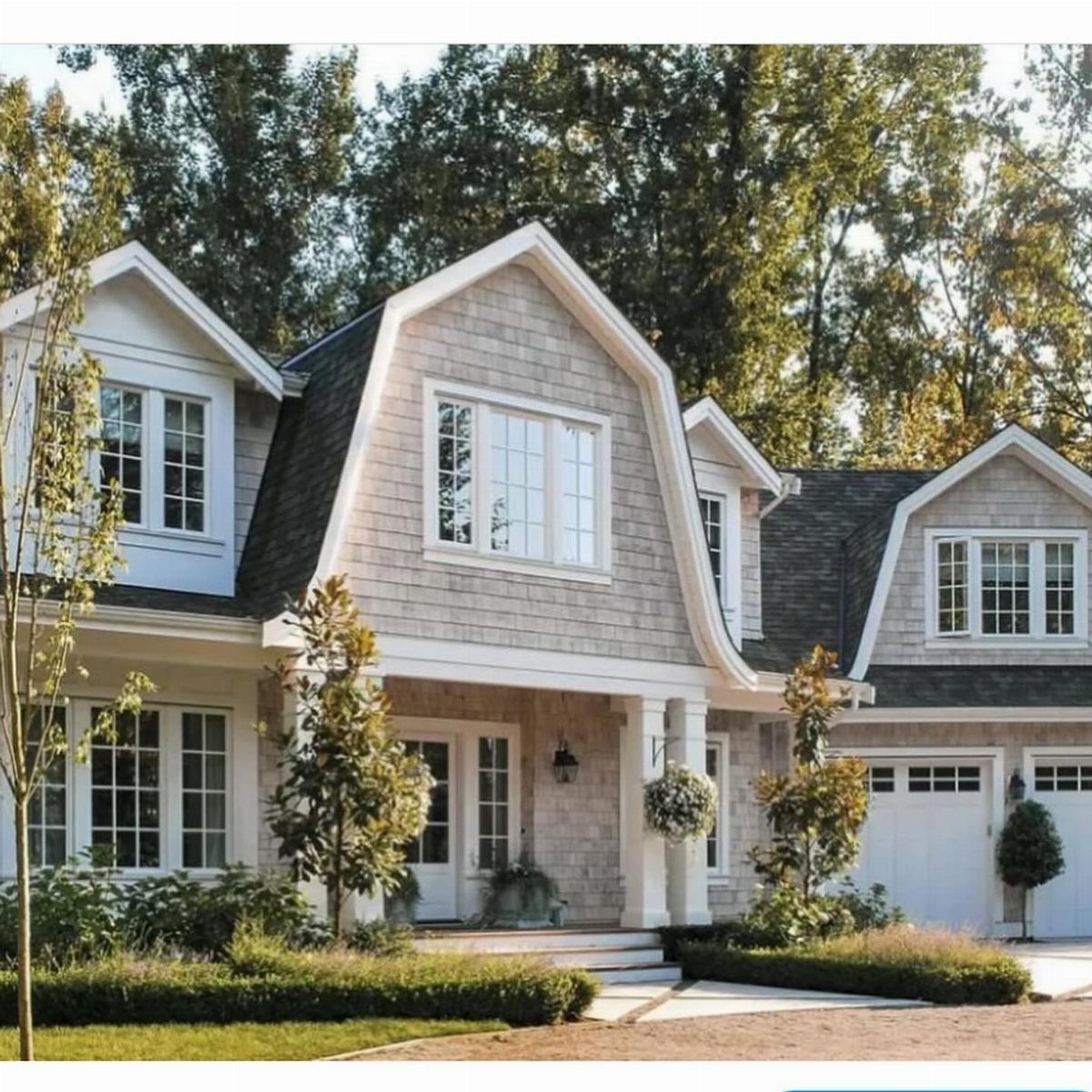

7. Gambrel Roof
The gambrel gives you 2 pitches on each side, a steep lower slope and a shallower top, squeezing usable headroom out of the same footprint. It reads barn, not garage, which works if your house already leans that way.
Shingles suit a gambrel roof, though I would check the upper pitch against your shingle manufacturer’s minimum before committing. Too flat and water backs up at the transition.
The double break means more rafter cuts and a longer ridge board, so framing runs higher than a simple gable. For storage upstairs or that barn aesthetic, the extra lumber is money well spent.
80 feet (20 pcs 4 ft long) of metal snow guards rails per carton
✔︎ FEATURES: Can be mounted with the following optional methods: Adhesive, 3M PeelnStick or Screws. Hardware is not included.
20-Piece Value Kit: Includes 19 mini shingle strips (11.81"x1.97", 0.08" thick) and 1 ridge cover (11.81"x4.33", 0.08" thick). Available in different color options to customize your outdoor DIY crafts.
Choosing the Right Roof Style
Climate, budget, and what you are actually doing in the garage should drive the choice, not how the roof looks in a rendering.
Snow and heavy rain both push toward vertical-panel metal roofs.
Water and snow slide faster, and the seams run the right direction for drainage. In dry, mild places where cost matters most, a boxed-eave or regular roof gets the job done, though vertical still wins on lifespan everywhere.
The upfront gap is real: regular roofs cost less to buy and install. Over 20–40 years, the maintenance math usually flips that around.
What you are storing matters. Vehicles, workshop gear, or anything you cannot replace easily justifies the sturdier roof.
The bigger the footprint, the more surface area weather hits, and the more a vertical roof pays back. A 12×20 shed in southern Arizona faces a different equation than a 40×60 Midwest garage.
For a shed you plan to replace soon, or a first build in a calm climate, the cheaper styles buy you time. Anything meant to last, I would spend the extra now.
Long-Lasting Durability: Made from high-quality galvanized steel with a rust-resistant coating and UV-treated surface, these metal roof panels are designed for long-term use and to maintain their appearance over time
Premium Material -SHPAI metal roofing panels are crafted from galvanized steel which offers exceptional waterproofing, UV resistance, and anti-rust properties. Lightweight yet highly durable, these metal siding panels are energy-efficient, making them popular in modern construction
Heavy-Duty Metal Panels: Our metal roof panels are crafted from high-quality galvanized steel, offering long-lasting weather resistance, corrosion resistance, rust prevention, and waterproofing. These panels remain robust and durable even under extreme weather conditions.
Roof Materials
Metal roofs need less attention than shingles and they do not burn, which matters if your garage sits near the house or stores fuel, paint, or welding gear.
The maintenance gap is real: shingles curl, lose granules, and need spot replacement after storms. Metal sheds water and snow faster, and a standing seam system has fewer leak points than a shingle field full of nail holes.
Fire resistance is a code consideration in some counties, and an insurance one in others; check both before you decide.
The trade-off is noise and upfront cost. Rain on uninsulated metal is loud, and the material runs higher per square foot than basic architectural shingles.
For a detached workshop I would take the metal anyway. For a garage I am finishing as living space, I might add sheathing and insulation under that metal to dampen sound, which narrows the price gap with a shingle assembly.
IMPROVES WATER FLOW & DRAINAGE Raised dimple design creates a continuous air gap that directs water toward drains or sump systems, reducing standing moisture in crawl spaces and basements.
【Extremely Water Barrier Capability and Anti Fracture】Composed of the denser reinforcing stitch-bonded polyester. anti-fracture liquid membrane tape adds strength to waterproofing membranes while preventing cracks or dampness from permeating the finished overlay. Outperforms fiberglass mesh tape. Tips: Non-adhesive tape
Superior Waterproofing Performance:Made of premium rubber material, this roofing membrane forms a seamless waterproof barrier to seal roof cracks and stop leakage thoroughly. Upgraded self-adhesive backing delivers strong, increasingly stable bonding with surfaces, perfectly solving roof seepage problems and providing long-lasting waterproof protection for your buildings.
Roof Pitch Importance
Pitch is what keeps water moving.
Some steel roof companies draw the line at 2:12; below that you are in membrane territory, which is a different material and a different budget.
Flat roofs with membranes concentrate snow load right where you do not want it.
Weeks of sitting snow beats on the surface and adds weight the structure was not framed for. If you are set on a flat look in snow country, build in access for sweeping and keep the drainage path clear.
In dry climates the clean horizontal line is hard to beat, but the slope still has to be there, even if you cannot see it.
